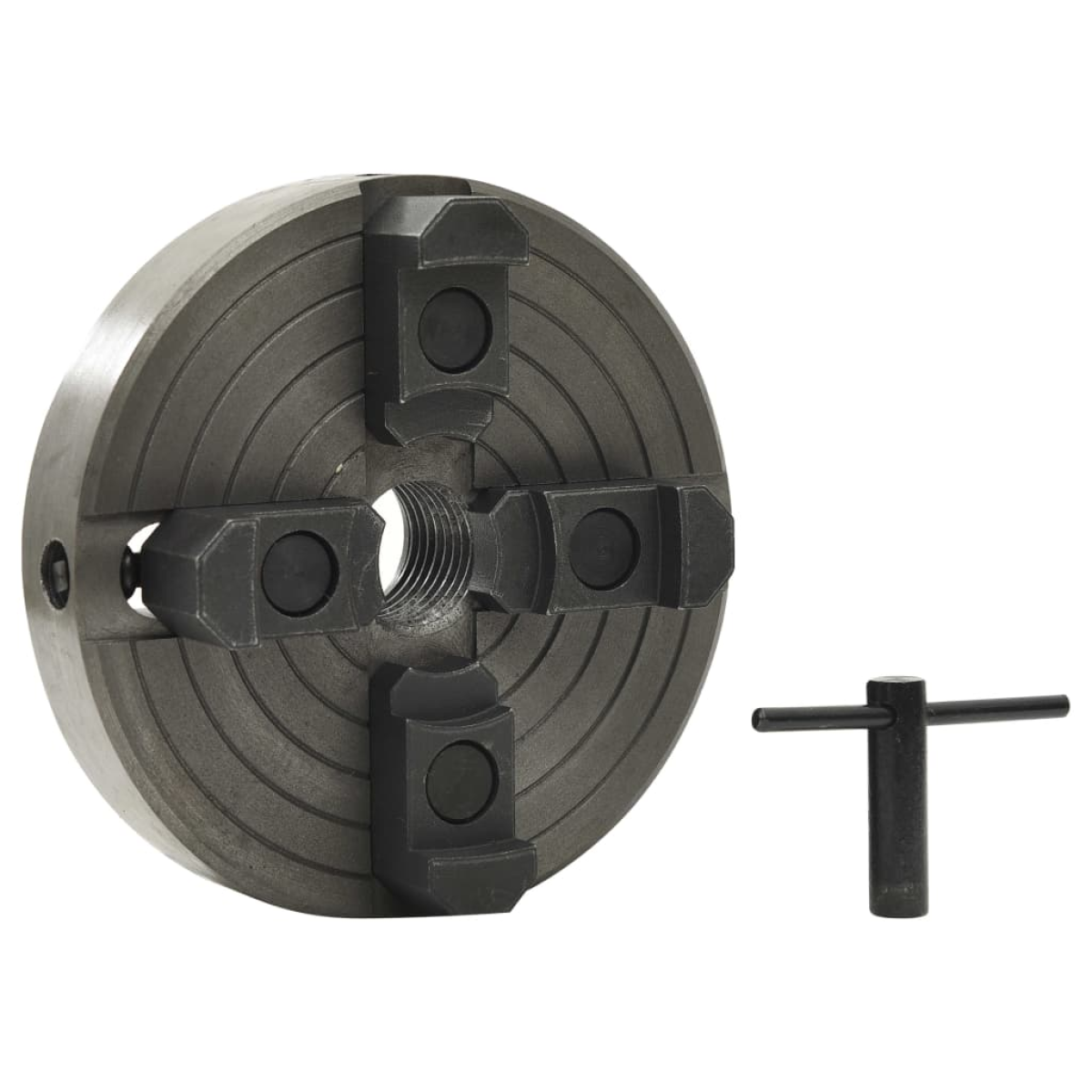

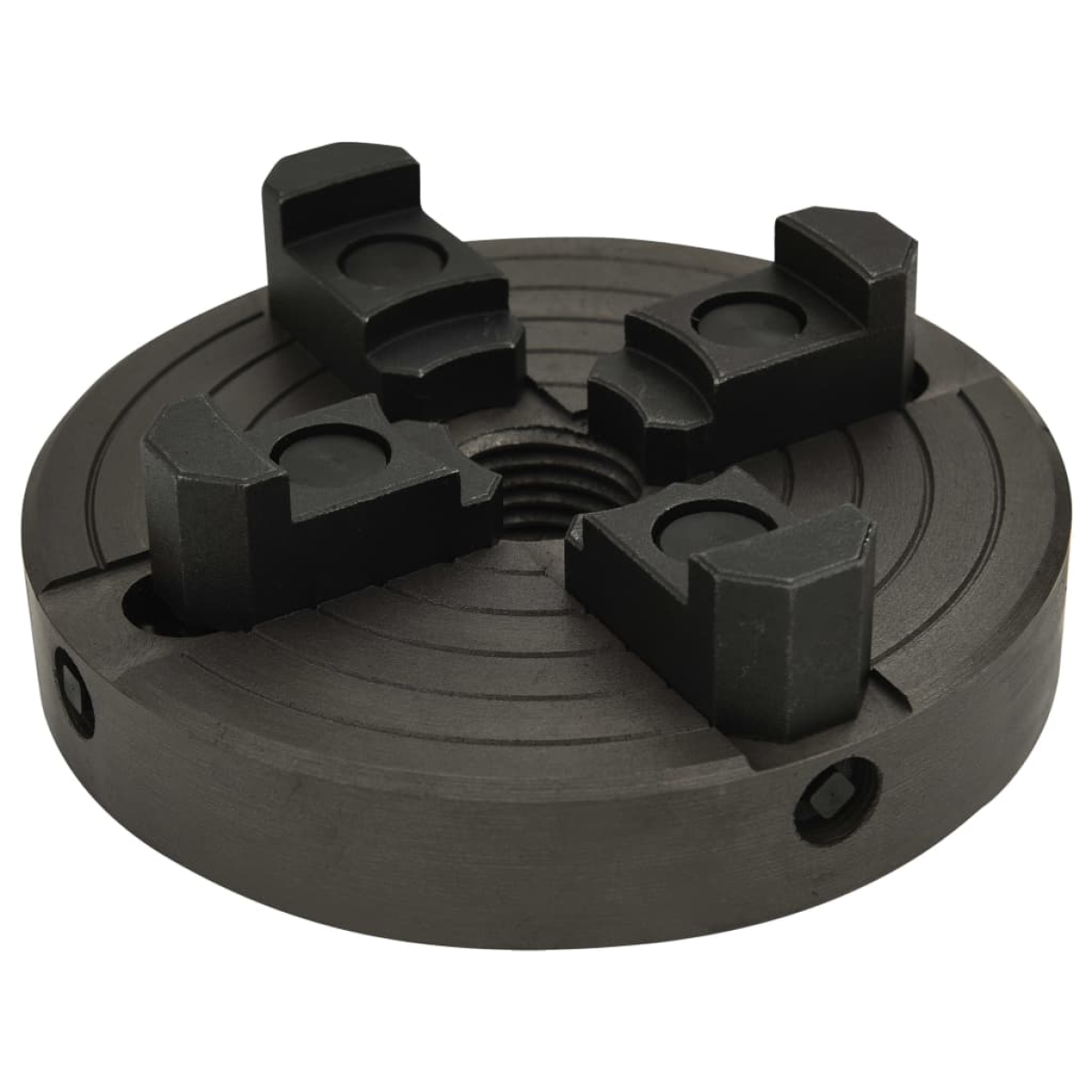

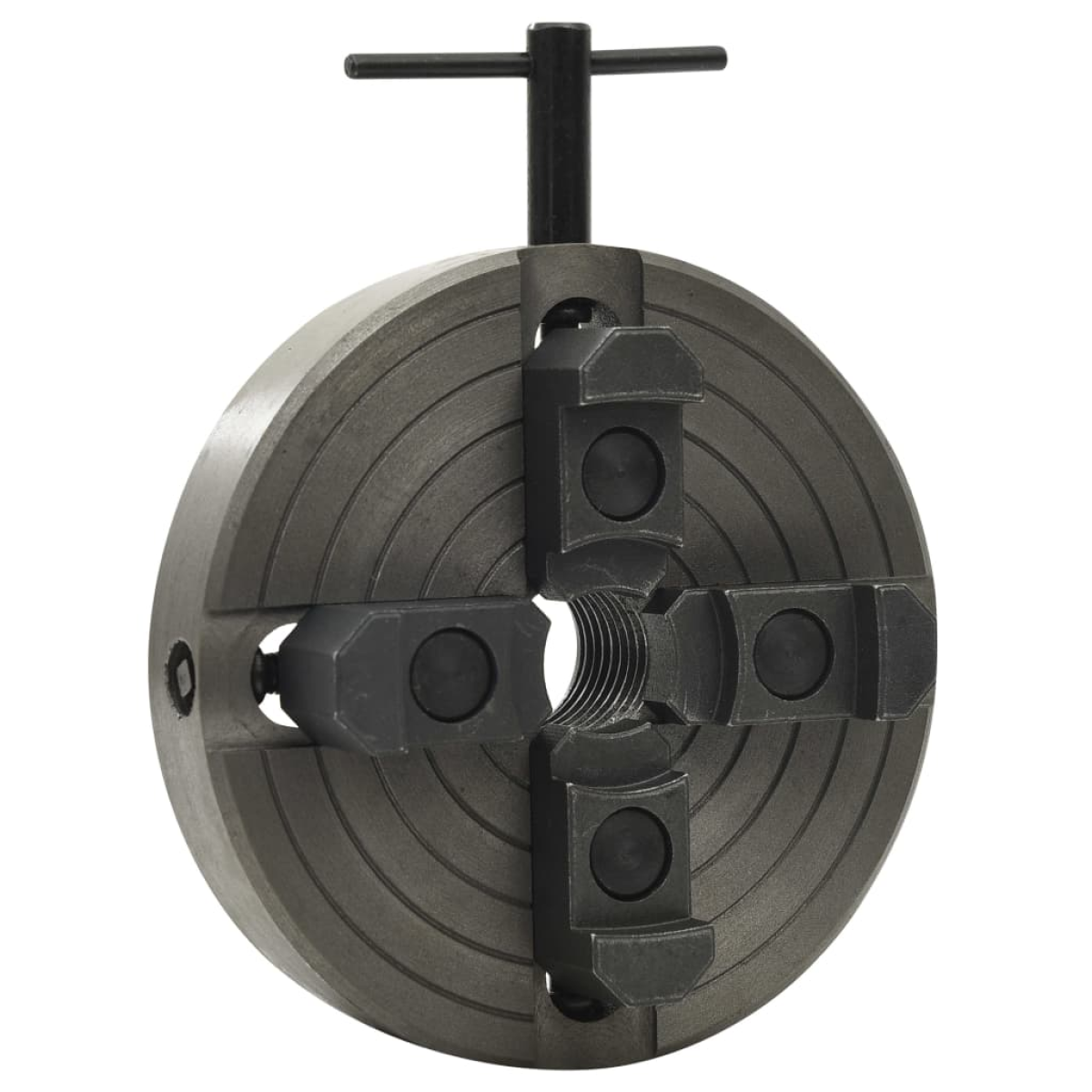

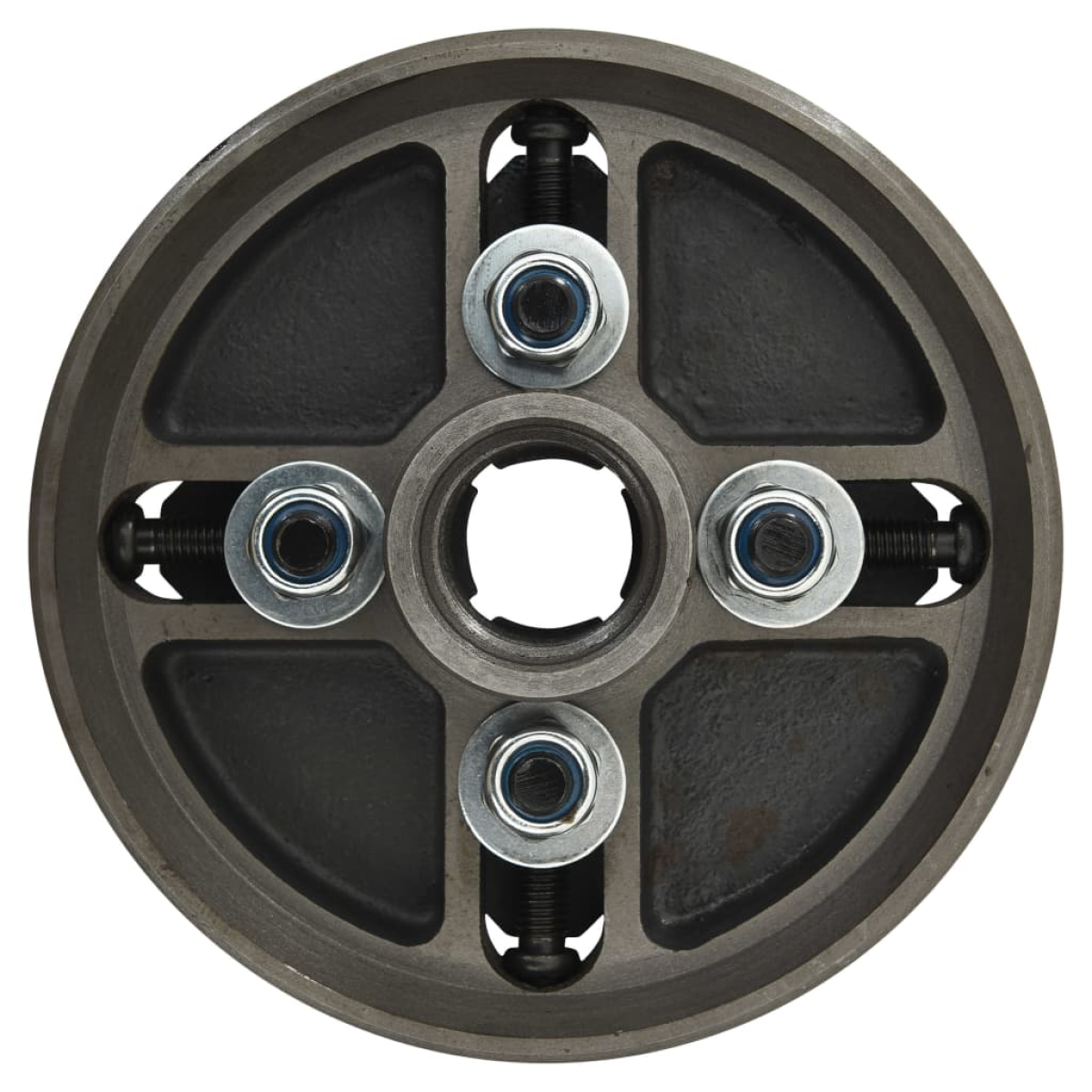

This wood chuck can perform a wide range of tasks, expanding the possibilities of making your original designs. It also provides high clamping accuracy on a wide range of surfaces, such as a fixed solid or hollow circle material, a triangular material, or a hexagonal material. This wood lathe chuck is made of steel, making it strong and durable. Featuring 4 jaw design, the chuck is easy to use and fits a wide range of wood chucking lathe.

• Colour: Black
• Material: Steel
• Overall dimensions: 150 x 63 mm (Diameter x H)
• Number of jaws: 4
• Not self centering
• Thread: M 33 with pitch 3.5
• The smallest diameter can be clamped about 15x15 mm
• Clamping range (internal jaw): 15 - 138 mm
• Clamping range (external jaw): 52 - 165 mm
• Thread depth: 39 mm
• Complete depth without jaws: 39 mm
• Complete depth with jaws: 63 mm
• Maximum speed: 3000 R/min
• Net weight: 2.48 kg
• Assembly required: Yes
• Delivery contains:
• 1 x Chuck
• 1 x Spanner
